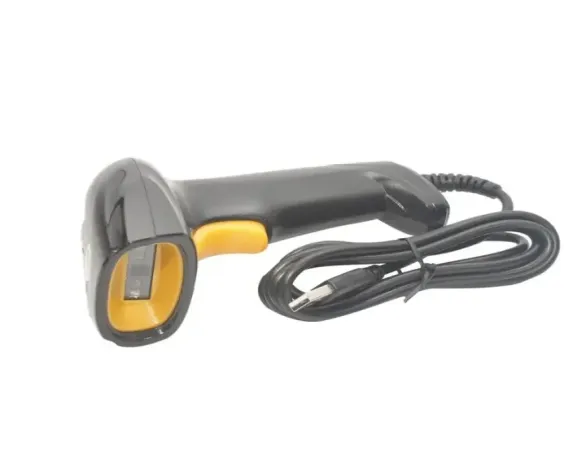

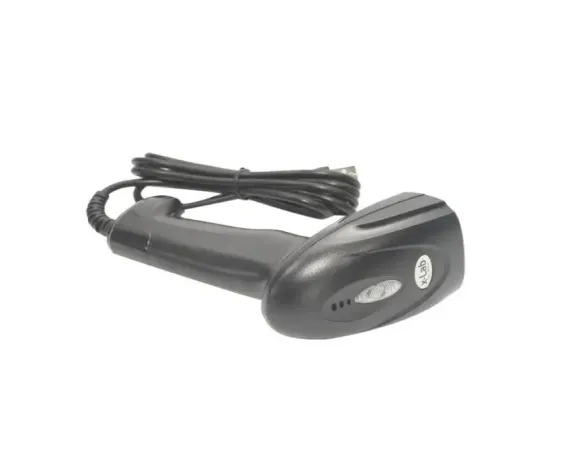

X-Lab XBS-763L Barcode Reader & Scanner
SKU
XBS-763LQuantity
0 leftCategory
Office Solutions| Brand | xLab |
|---|---|
| Product Name | xLab XBS-763L Wired Laser Barcode Reader |
| Model | XBS-763L |
| Country of Origin | USA |
| System Interface | Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS |
| Microprocessor | 32 bit |
| Dimensions | 161.5 × 72.5 × 55.2 mm (device only) |
| Cable | Standard 2M straight |
| Input Voltage | 5 VDC ±5% |
| Operating Current | Designed to withstand 1.5M drops |
| 1D Barcode | UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limite |
| Minimum Bar Width | 3 mil (Code 39) > 60% PCS |
| Humidity | 5% – 95% RH (non-condensing) |
| Standby Current | 55 mA typical |
| Operating Temperature | 0°C – 50°C (32°F – 122°F) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Light Level | 6, 000 Lux (fluorescence) |
| Function | 1D Barcode Scan, 150 scans per sec, Two-colors LED |
| Light Source | 625 nm visible LED |
| Depth of Field | 3 mil: 0 mm, 4 mil: 0 – 40 mm, 5 mil: 0 – 45 mm,7.5 mil: 0 – 50 mm, 10 mil: 0 – 60 mm, 13 mil: 0 – 75 mm, 20 mil: 0 – 90 mm |
| Scan Rate | 150 scans per second |
| Print Contrast | 25% @ UPC/EAN, 100% |
| Indicator | Two-colors LED |
| Beeper Operation | Programmable tone & beep time |
| EMC | CE & FCC DOC compliance, VCCI, BSMI |
| Optical System | 2, 500 pixel linear sensor |
| Warranty | 1 Years |
